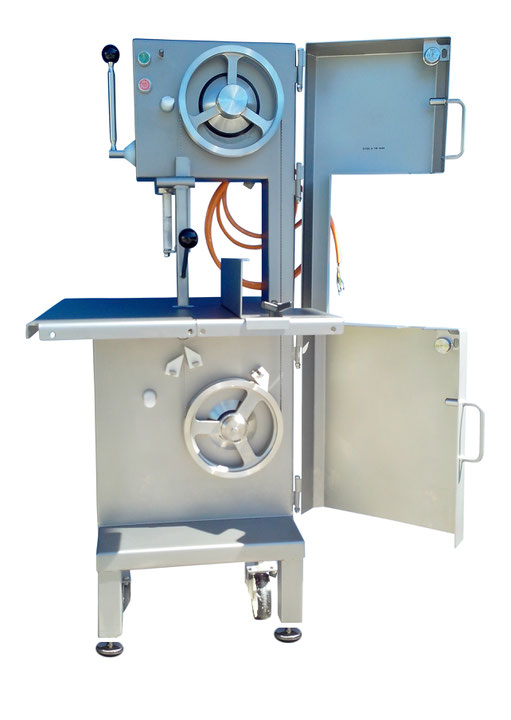

I-SAW265

-"CE"-certified and "GS"-approved
(complies with European hygiene and safety regulations.)
-According the EEC Safety regulations
-with 2 fixed wheels in stainless steel housing
-with 2 in height adjustable machine feet.
-Material pusher removable
-upper saw blade guidance adjustable in height.
-Motor stops automatically when opening
 the doors or covers.
-With maintenance free electronic brake motor.
-Band saw guidance exchangable without use of tools.
-Gas damper provides always correct tension
 of blade.
-Blade guided in the wheels, therefore can not
 jump down from wheel.
-By additional grooves the crossing of teeth
 will be not effected by the wheels.





-Self-carrying frame, strong table, waste bin,
 portion-gauge in stainless steel inoxydable.
-Safety magnets in hyginic design.
-Control device for safety switches.
-Easy to maintain contactor box with standard parts.
-Large grip for ergonomic opening of doors
Voltage            : 230/400 V / 50 cycles
Connection load    : 1,1 kW
Revolutions        : 1500 / min.
Dimensions table   : 560 x 670 mm
Width of cutting   : 200 mm
Height of cutting  : 280 mm
Saw blade          : 2135 x16 x 0.6 mm
Housing            : Stainless steel
Dimension          : 560 x 670 x 1455 mm
Height of table    : 871 mm
Netweight          :  100 kg
Grossweight        : 120 kg on pallett
